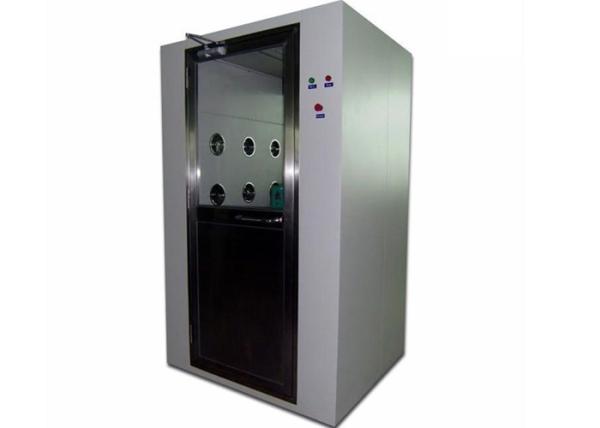

10-50 Person Class 1000 Clean Room Air Shower With Infrared Sensors And Emergency Switch
Description:
1. Airshower is necessary for workers when he/she entering the clean room.It can reduce the pollution bring into clean room by people.
2 Airshower is a strong purification equipment, installed between the clean room and non-clean room. The dust carry on the woker will be remove by blowing leaching before the worker into the clean room.It can effectively block or reduce the source of dust into the clean area. Airshower around two doors for electronic interlocking, but also play the role of an airlock, preventing unpurified air into the clean area.
Airshower & air shower channel standard configuration functions
features:
1 Using automatic control operation, two-door electronic interlocking, automatic induction air shower, double doors locked when you blow shower.
2 Cold spray series, using multi-acid technology, electrostatic dust-free spray.
3 Stainless steel handle, thick stainless steel base plate, stainless steel nozzle as the basic configuration.
4 With digital blowing leaching time, air shower time is 0 ~ 99s adjustable, and displays air shower time.
5 Using the new design concept designed to send the wind leaching system wind speed can reach 25m / s ~ 32m / s super speed, to ensure that the person entering the clean room to achieve complete removal of the perfect effect.
Parameter:
| KEL-AST500 Air Shower Tunnel |
| MODEL | KEL-AS1300T-7T |
| External size (mm) (WXDXH) | 1200x7500x2180 |
| Work zone (mm) (WXDXH) | 800x7360x1910 |
| Persons per cycle | 10-50 person |
| Air shower Duration | Factory set at 12 second (adjustable) |
| Air shower direction | Three side with blowing |
| Material (Option) | 1: Entirety Sus304. 2: Entirety sus201. 3: External is steel with power coated, Internal is SUS304. 4: External is steel with power coated. Internal is SUS201. |
| Control system | 1: PCL control system with LED display for the shower time. 2: The shower time from 0-99second. (Adjustable). 3: Infrared ray inductor for inside personal shower automatic. 4: Human voice prompt system. 5: with CE remark |
| The power of Fan | 380V/50HZ/750W (6 sets) |
| Air flow of fan(m3/h) | 1300m3/h |
| Fan run (r/min) | 2800r/min |
| Nozzle in stain less steel | 100 pcs |
| Wind speed(m/s) | 23-29m/s |
| Noise level(dB) | <62dB |
| LED Fluorescent Lamp | 20wx6 |
| HEPA Filter | Size(mm) | 630X630X69mm |
| Efficiency | 99.99%@0.3um |
| Air velocity | 1000(m3/h) |
| Initial resistance(pa) | <220pa |
| Pre-filter | Size(mm) | 775x380x17 |
| Efficiency | 75% @ 0.5um |
| Resistance(pa) | <30 Pa |
| Electrical | Power supply | 380v/50Hz or 380v |
| Net power(kw) | 0.75X6 kw |
Customer’s design is available.

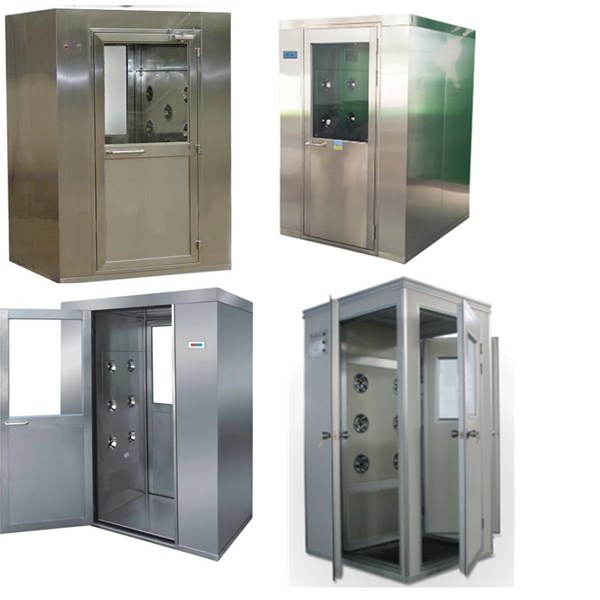

Air shower display:
